Walter Driver V1

€20.00

Walter Driver V1

Quantity

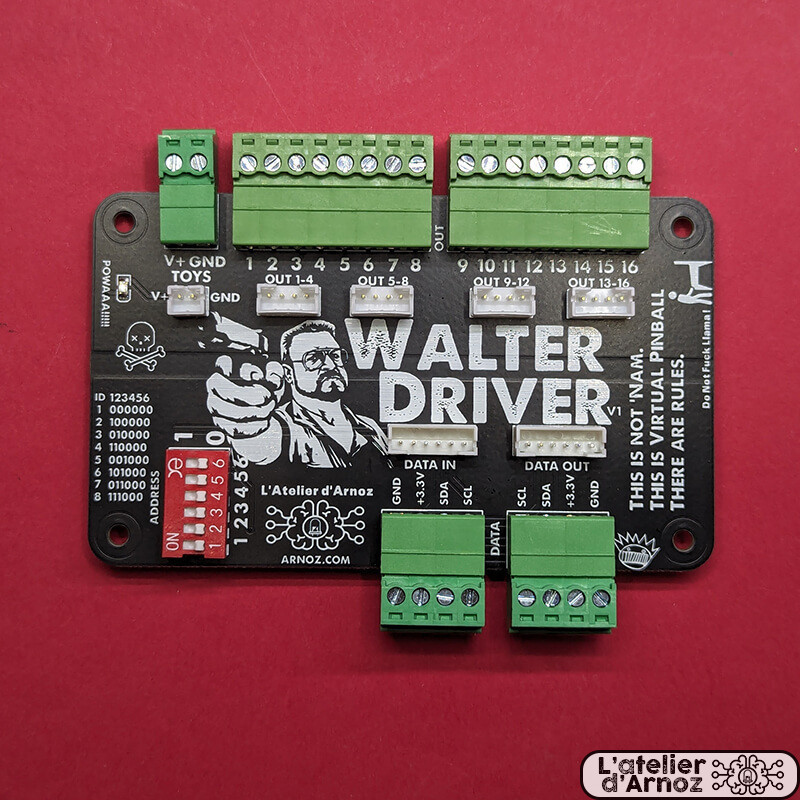

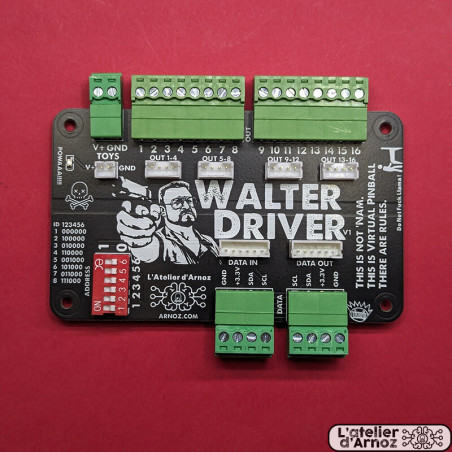

This card is an expansion card that allows you to add 16 PWM ports to a Dude's Cab.

Each Walter Driver card adds 16 PWM ports, and they can plug in one after the other to add more PWM ports.

Each Walter Driver card is equipped with a Dip Switch to give it an address which will allow the outputs to be easily configured using the Dude's Cab configuration program

It is designed to receive "daughter" cards which will manage the power (MOS4, MOS8, MOSLIGHT, MiniMOS4 card).

From there, you will have 16 additional (modular) PWM outputs, each with opto-electronic protection to properly separate the Dude's Cab from the toy power supplies, to which you will connect your daughter cards.

You can connect several Walter Drivers in succession.

The system is made up of a card that is connected to the Dude's Cab using sockets or JST-PH cables, the cables and cables are not provided, a +12v from the power supply is also connected toys, as well as a GND coming from the toys power supply (or from the MOS card using the JST-PH 2 pin cable).

No more limits to the sensations on your pincab!

Board is 8 x 10 cm size including plug

Documentation is available HERE and PDF HERE

UNDER NO CIRCUMSTANCES WILL IT BE USED ALONE AND WILL NEVER CONNECT TOYS DIRECTLY TO IT!!!

WALTER_DRIVER_V1
