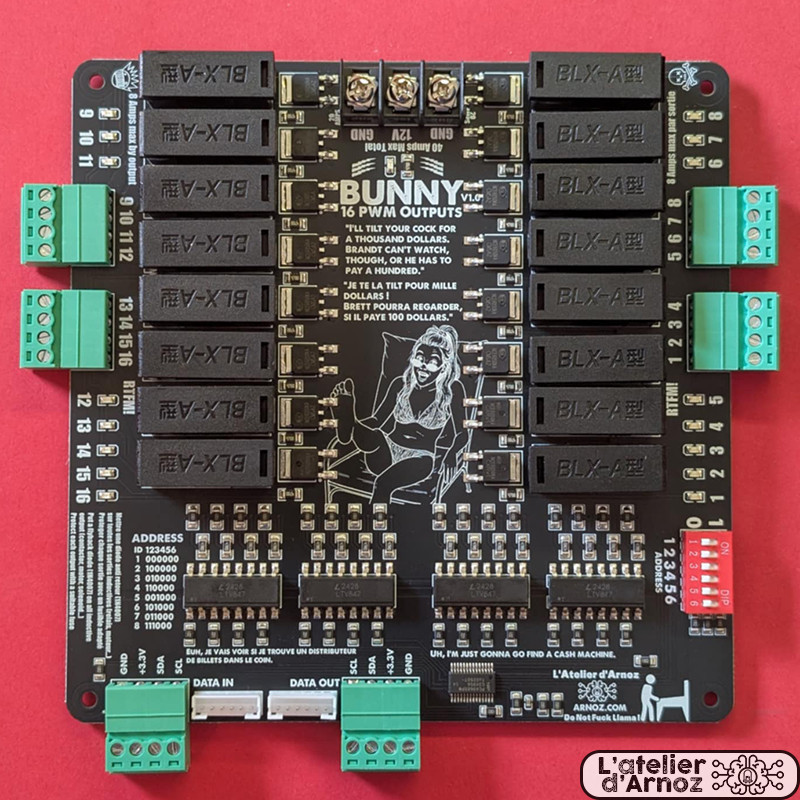

BUNNY

Did you liked the Master of Mosfets ? So you will fall in love with the BUNNY

Equivalent to 1 WALTER DRIVER + 2 MOS8 all on a single 16 cm by 16 cm PCB.

This card connects to a Dude's Cab.

From there, you will have 16 additional pwm (modular) outputs, each with opto-electronic protection to properly separate the Dude's Cab from the toy power supplies, an over-sized mosfet and a 5 * 20 fuse holder. Each output receives an intensity of 8 amperes, the simultaneous consumption is limited to 40 amperes.

You can control toys from 0 to 48 Volts with the same card.

You can connect several expansion cards one after the other.

The system consists of a card which is connected to the Dude's cab using the JST 6 Pins sockets or 4 wire, the cables are not supplied, there is also a + 12v coming from the toys supply, as well as a GND coming of toy feeding. The GND cable coming from the toys power supply must be of section adapted to collect 40 amps! This GND terminal block is doubled to accept 2 cables of less section receiving 20 amps.

This card has 16 fuse holders in 5 * 20 format and output sockets that you will connect to the negative terminal of the toy to be controlled.

No more limit to the sensations on your pincab!

Delivered without fuses
