KL SHIELD 3D Holder
A shield to simplify the connections of the kl25z.
This shield will simplify and secure your wiring on the KL25Z with the new V5.
It comes to fit in Dupont pins of a kl25z.

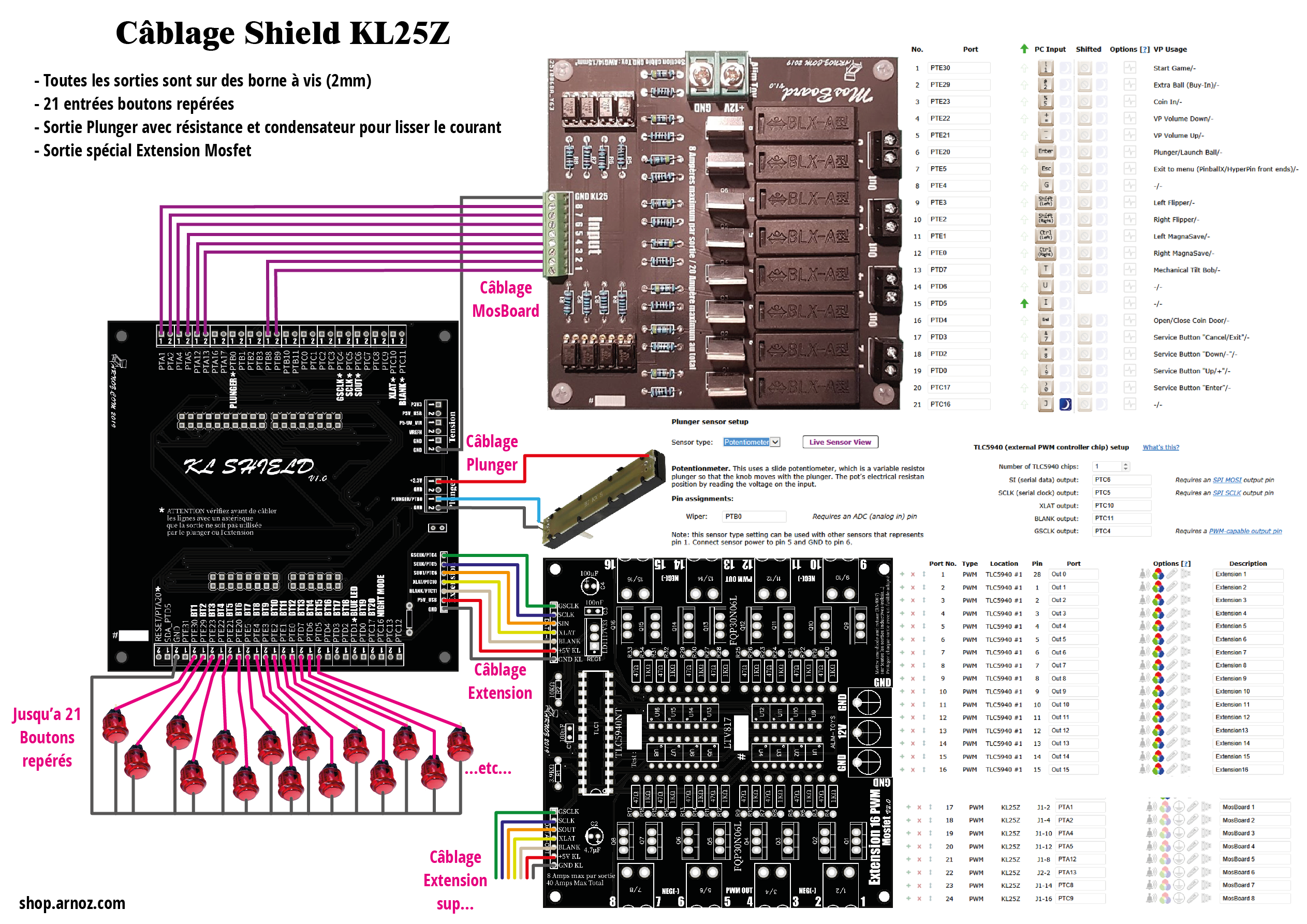

You will find all the connector available on identified plug.
In addition to the classic KL25Z mark, you'll find 21 other mark to simply plug in your buttons (configuration file for the supplied KL25Z).
A capacitor, a resistor, well enough to filter the information of the plunger's potentiometer that you will come to connect to its dedicated connectivity, and also for the CALIBRE card.
All voltage connections are grouped together with may GND to simplify connections.
And there is a dedicated connection to connect the MOLLUSK.
V5.1 Update : All button output have REAL name
Everything is spotted, secure, and simple.
Manual is available HERE.
Delivered with its 4 TPU PCB feet as a gift.
