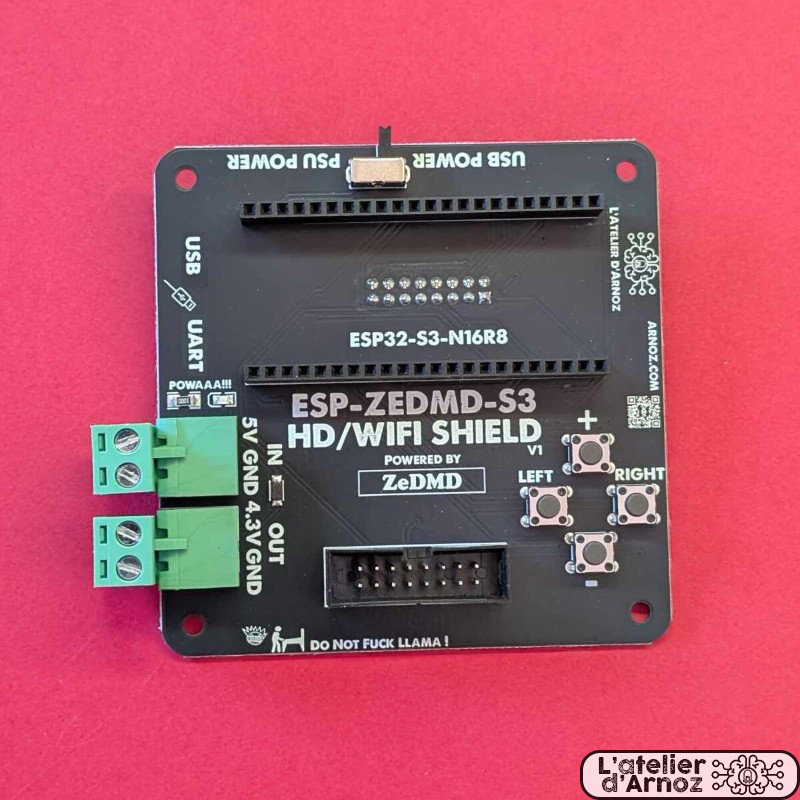

ESP-ZEDMD-S3 SHIELD

SHIELD for DMD based on ESP32 S3 N16R8 and ZeDMD-SD or HD
With that board, you will be able to build a real DMD based on the ZeDMD solution from ZeDrummer .

All you have to do is plug your ESP32 S3 N16R8 into the pins provided (the dupont pins of your ESP must be soldered under the card)
An integrated solution to supply your tiles with 4.3 volts.

You can choose to insert the ESP-DMD SHIELD directly into your first panel, or use a ribbon cable
Four buttons to navigate thru menu

Works with resolutions ranging from 32*128 to 64*256 and up to 256 colors.

ZeDMD is a solution developed by ZeDrummer from the Pincab Passion forum

No license is required to mount your DMD

Manual : https://shop.arnoz.com/laboratoire/2025/04/18/esp-zedmd-s3-shield-mode-demploi

Tutorial available on the Pincab Passion Forum

Here's how tu update your DMD in English : https://www.pincabpassion.net/t15530-tuto-zedmd-update
